BOUNCEXY — Balls viewer

Block Screenshot

Contents

Palette

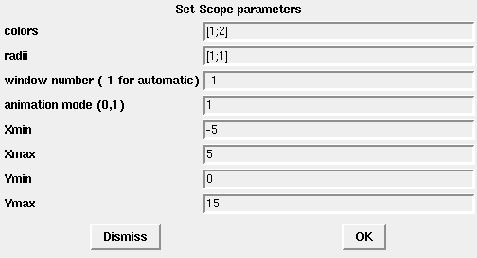

Dialog box

  • colors

    The parameter description 1.

    Properties : Type 'vec' of size -1.

  • radii

    The parameter description 2.

    Properties : Type 'vec' of size -1.

  • window number (-1 for automatic)

    The parameter description 3.

    Properties : Type 'vec' of size 1.

  • animation mode (0,1)

    The parameter description 4.

    Properties : Type 'vec' of size 1.

  • Xmin

    The parameter description 5.

    Properties : Type 'vec' of size 1.

  • Xmax

    The parameter description 6.

    Properties : Type 'vec' of size 1.

  • Ymin

    The parameter description 7.

    Properties : Type 'vec' of size 1.

  • Ymax

    The parameter description 8.

    Properties : Type 'vec' of size 1.

Default properties

  • always active: no

  • direct-feedthrough: no

  • zero-crossing: no

  • mode: no

  • regular inputs:

    - port 1 : size [-1,1] / type 1

    - port 2 : size [-1,1] / type 1

  • number/sizes of activation inputs: 1

  • number/sizes of activation outputs: 0

  • continuous-time state: no

  • discrete-time state: yes

  • object discrete-time state: no

  • name of computational function: bouncexy

Interfacing function

  • SCI/modules/scicos_blocks/macros/Misc/BOUNCEXY.sci

Computational function

  • SCI/modules/scicos_blocks/src/c/bouncexy.c (Type 4)

Authors

  • Ramine Nikoukhah INRIA

  • Benoit Bayol
