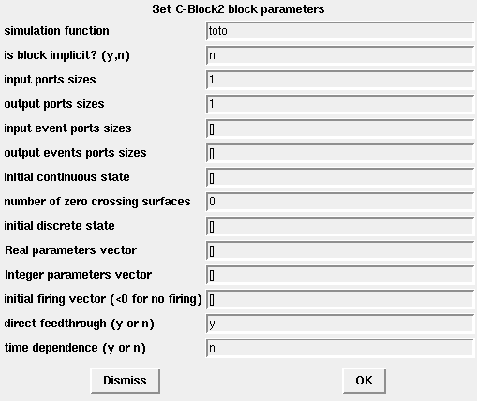

New C

User defined functions palette

simulation function

Name of the function to be generated.

Properties : Type 'str' of size 1

is block implicit?

If yes (y) is selected, it calls implicit solver (dasrt) else (n) it calls explicit solver, lsodar.

Properties : Type 'str' of size 1

input ports sizes

Number of regular input ports

Properties : Type 'vec' of size -1

output ports sizes

Number of regular output ports

Properties : Type 'vec' of size -1

input event ports sizes

Number of event input ports

Properties : Type 'vec' of size -1

output events ports sizes

Number of event output ports

Properties : Type 'vec' of size -1

initial continuous state

Initial Conditions

Properties : Type 'vec' of size -1

number of zero crossing surfaces

Select to enable zero crossing detection.

Properties : Type 'vec' of size 1

initial discrete state

Initial conditions of the discrete states.

Properties : Type 'vec' of size -1

Real parameters vector

Real Parameter vector that the function accepts.

Properties : Type 'vec' of size -1

Integer parameters vector

Integer Parameter vector that the function accepts.

Properties : Type 'vec' of size -1

initial firing vector

A vector. Size of this vector corresponds to the number of event outputs. The value of the entry specifies the time of the preprogrammed event firing on the output event port. If less than zero, no event is preprogrammed.

Properties : Type 'vec' of size 'sum(%6)'

direct feedthrough

The input to the block at the current time determine the output of the block at the current time. This forces the input to feed through to the output, as if the system were operating at steady-state.

Properties : Type 'str' of size 1

time dependence

Create a signal that specifies the time dependence.

Properties : Type 'str' of size 1

always active: no

direct-feedthrough: yes

zero-crossing: no

mode: no

regular inputs:

- port 1 : size [1,1] / type 1

regular outputs:

- port 1 : size [1,1] / type 1

number/sizes of activation inputs: 0

number/sizes of activation outputs: 0

continuous-time state: no

discrete-time state: no

object discrete-time state: no

name of computational function:

SCI/modules/scicos_blocks/macros/Misc/CBLOCK.sci
