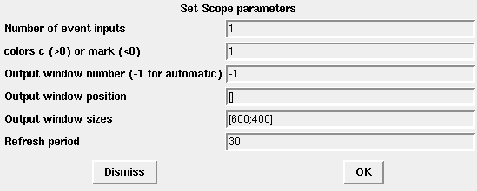

Activation scope

Event handling palette

Number of event inputs

an integer giving the number of event input ports colors : a vector of integers. The i-th element is the color number ( ) or dash type ( ) used to draw the evolution of the i-th input port signal. Seexset for color (dash type) definitions.

Properties : Type 'vec' of size 1

colors c

an integer. It is the color number ( ) or dash type ( ) used to draw the evolution of the input port signal. Seeplot2d for color (dash type) definitions.

Properties : Type 'vec' of size -1

Output window number

The number of graphic window used for the display. It is often good to use high values to avoid conflict with palettes and Super Block windows. If you have more than one scope, make sure they don't have the same window numbers (unless superposition of the curves is desired). Output window position : a 2 vector specifying the coordinates of the upper left corner of the graphic window. Answer [] for default window position.

Properties : Type 'vec' of size 1

Output window position

Properties : Type 'vec' of size -1

Output window sizes

a 2 vector specifying the width and height of the graphic window. Answer [] for default window dimensions.

Properties : Type 'vec' of size -1

Refresh period

Maximum value on the X-axis (time). The plot is redrawn when time reaches a multiple of this value.

Properties : Type 'vec' of size 1

always active: no

direct-feedthrough: no

zero-crossing: no

mode: no

number/sizes of activation inputs: 1

number/sizes of activation outputs: 0

continuous-time state: no

discrete-time state: no

object discrete-time state: no

name of computational function: cevscpe

SCI/modules/scicos_blocks/macros/Sinks/CEVENTSCOPE.sci

SCI/modules/scicos_blocks/src/c/cevscpe.c (Type 4)

Ramine Nikoukhah INRIA

Benoit Bayol
