Floating point scope

Sinks palette

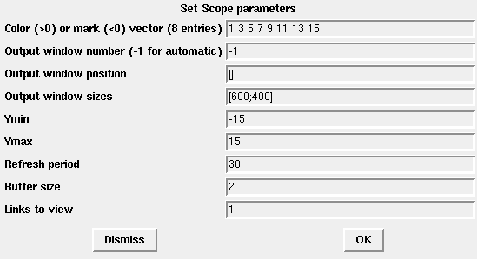

Color

a vector of integers. The i-th element is the color number ( ) or dash type ( ) used to draw the evolution of the i-th input port signal. Seeplot2d for color (dash type) definitions.

Properties : Type 'vec' of size 8

Output window number

The number of graphic window used for the display. It is often good to use high values to avoid conflict with palettes and Super Block windows. If default value is used(1) , Xcos define the output window number.

Properties : Type 'vec' of size 1

Output window position

a 2 vector specifying the coordinates of the upper left corner of the graphic window. Answer [] for default window position.

Properties : Type 'vec' of size -1

Output window sizes

a 2 vector specifying the coordinates of the upper left corner of the graphic window. Answer [] for default window position.

Properties : Type 'vec' of size -1

Ymin

Minimum values of the input; used to set up the Y-axis of the plot in the graphics window.

Properties : Type 'vec' of size -1

Ymax

Maximum values of the input; used to set up the Y-axis of the plot in the graphics window.

Properties : Type 'vec' of size 1

Refresh period

Maximum value on the X-axis (time). The plot is redrawn when time reaches a multiple of this value.

Properties : Type 'vec' of size

Buffer size

To improve efficiency it is possible to buffer the input data. The drawing is only done after eachBuffer size call to the block.

Properties : Type 'vec' of size 1

Links to view

This parameter allows you to display the output of specified link.

Properties : Type 'vec' of size 1

always active: no

direct-feedthrough: yes

zero-crossing: no

mode: no

number/sizes of activation inputs: 1

number/sizes of activation outputs: 0

continuous-time state: no

discrete-time state: no

object discrete-time state: no

name of computational function: cfscope

SCI/modules/scicos_blocks/macros/Sinks/CFSCOPE.sci

SCI/modules/scicos_blocks/src/c/cfscope.c (Type 4)

Ramine Nikoukhah INRIA

Benoit Bayol
