CLKGOTO — Pass block input to CLKFROM block

Block Screenshot

Contents

Palette

Description

This block is used to connect events ports. For more information on how it works please refer to the documentation of the GOTO block by clicking on the link in the "See also" field.

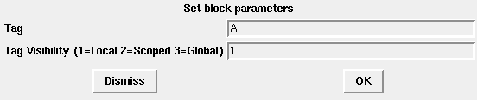

Dialog box

  • Tag

    This parameter identifies the Goto block whose scope is defined in this block.

    Properties : Type 'str' of size -1.

  • Tag Visibility (1=Local 2=Scoped 3=Global)

    This parameter idetifies the visibility of the block. It can be local(1), scoped(2) or global(3).

    Properties : Type 'vec' of size 1.

Default properties

  • always active: no

  • direct-feedthrough: no

  • zero-crossing: no

  • mode: no

  • number/sizes of activation inputs: 1

  • number/sizes of activation outputs: 0

  • continuous-time state: no

  • discrete-time state: no

  • object discrete-time state: no

  • name of computational function: clkgoto

Interfacing function

  • SCI/modules/scicos_blocks/macros/Branching/CLKGOTO.sci

See also

Authors

Fady NASSIF - INRIA
