CLR — Continuous transfer function

Block Screenshot

Contents

Palette

Description

This block realizes a SISO linear system represented by its rational transfer function Numerator/Denominator. The rational function must be proper.

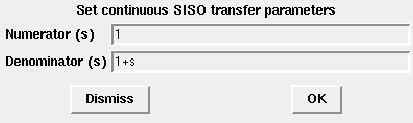

Dialog box

  • Numerator

    This parameter sets the numerator of the transfer function.

    This must be a polynomial in s.

    Properties : Type 'pol' of size 1.

  • Denominator

    This parameter sets the denominator of the transfer function.

    This must be a polynomial in s.

    Properties : Type 'pol' of size 1.

Default properties

  • always active: yes

  • direct-feedthrough: no

  • zero-crossing: no

  • mode: no

  • regular inputs:

    - port 1 : size [1,1] / type 1

  • regular outputs:

    - port 1 : size [1,1] / type 1

  • number/sizes of activation inputs: 0

  • number/sizes of activation outputs: 0

  • continuous-time state: yes

  • discrete-time state: no

  • object discrete-time state: no

  • name of computational function: csslti4

Interfacing function

  • SCI/modules/scicos_blocks/macros/Linear/CLR.sci

Computational function

  • SCI/modules/scicos_blocks/src/c/csslti4.c (Type 4)
