Nom
CLSS — Continuous state-space system
Description
This block realizes a continuous-time linear state-space system.
The system is defined by the
matrices and the initial state
. The dimensions must be compatible.

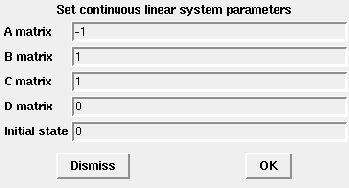

Dialog box
matrix
A square matrix.
Properties : Type 'mat' of size [-1,-1].
B matrix
The
matrix, [] if system has no input.Properties : Type 'mat' of size ["size(%1,2)","-1"].
C matrix
The
matrix , [] if system has no output.Properties : Type 'mat' of size ["-1","size(%1,2)"].
D matrix
The
matrix, [] if system has no D term.Properties : Type 'mat' of size [-1,-1].
Initial state
A vector/scalar initial state of the system.
Properties : Type 'vec' of size "size(%1,2)".
Default properties
always active: yes
direct-feedthrough: no
zero-crossing: no
mode: no
regular inputs:
- port 1 : size [1,1] / type 1
regular outputs:
- port 1 : size [1,1] / type 1
number/sizes of activation inputs: 0
number/sizes of activation outputs: 0
continuous-time state: yes
discrete-time state: no
object discrete-time state: no
name of computational function: csslti4
