Nom
CMATVIEW — Matrix Colormapped viewer

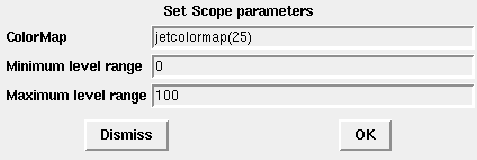

Dialog box
ColorMap
The colormap is a range color linked to the window output of the scope. You can put a jetcolormap or hotcolormap or graycolormap or your own (see colormap help).
Properties : Must be a mx3 matrix and m
= 3 Minimum level range
The minimum level range is the minimum value who comes in the regular input port. It would be linked to the 'cold value' of the colormap.
Properties : A scalar
Maximum level range
The maximum level range is the maximum value who comes in the regular input port. It would be linked to the 'hot value' of the colormap.
Properties : A scalar
Default properties
always active: no
direct-feedthrough: yes
zero-crossing: no
mode: no
regular inputs:
- port 1 : size [-1,-2] / type 1
number/sizes of activation inputs: 1
number/sizes of activation outputs: 0
continuous-time state: no
discrete-time state: no
object discrete-time state: no
name of computational function: cmatview
