Nom
CSCOPXY3D — z=f(x,y) permanent viewer
Description
This block realizes the visualization of the evolution of the three regular inputs signals by drawing the third input as a function of the two others at instants of events on the event input port. When a point is drawn on screen it stays until the simulation is finished.

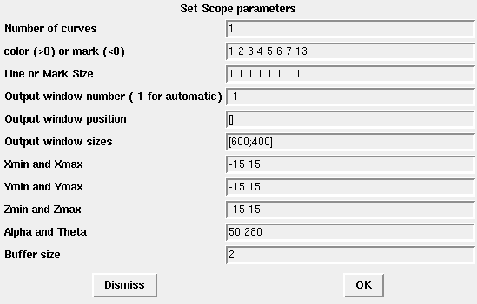

Dialog box
Number of Curves
Set the number of curves.
Properties : Type 'vec' of size -1
color
an integer. It is the color number (
) or marker type (
) used to draw the evolution of the input port signal. Seexset() for color (dash type) definitions.Properties : Type 'vec' of size -1
line or mark size
an integer.
Properties : Type 'vec' of size -1
Output window number
The number of graphic window used for the display. It is often good to use high values to avoid conflict with palettes and Super Block windows. If you have more than one scope, make sure they don't have the same window numbers (unless superposition of the curves is desired).
Properties : Type 'vec' of size -1
Output window position
a 2 vector specifying the coordinates of the upper left corner of the graphic window. Answer [] for default window position.
Properties : Type 'vec' of size -1
Output window sizes
a 2 vector specifying the width and height of the graphic window. Answer [] for default window dimensions.
Properties : Type 'vec' of size -1
Xmin and Xmax
Minimum and Maximum values of the first input; used to set up the X-axis of the plot in the graphics window.
Properties : Type 'vec' of size -1
Ymin and Ymax
Minimum and Maximum values of the second input; used to set up the Y-axis of the plot in the graphics window.
Properties : Type 'vec' of size -1
Zmin and Zmax
Minimum and Maximum values of the third input; used to set up the Z-axis of the plot in the graphics window.
Properties : Type 'vec' of size -1
Alpha and Theta
Set Alpha and Theta for the 3D view.
Properties : Type 'vec' of size -1
Buffer size
An integer value. In order to minimize the number of graphics outputs, data may buffered.
Properties : Type 'vec' of size 1
Default properties
always active: no
direct-feedthrough: no
zero-crossing: no
mode: no
regular inputs:
- port 1 : size [1,1] / type 1
- port 2 : size [1,1] / type 1
- port 3 : size [1,1] / type 1
number/sizes of activation inputs: 1
number/sizes of activation outputs: 0
continuous-time state: no
discrete-time state: no
object discrete-time state: no
name of computational function: cscopxy3d
