DELAYV_f — Variable delay

Block Screenshot

Contents

Palette

Description

Add here a paragraph of the function description

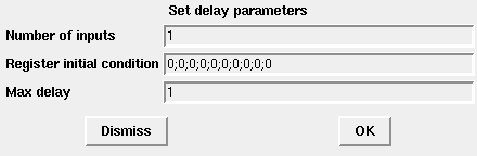

Dialog box

  • Number of inputs

    Set the vector size of the first regular input and the vector size of the regular output port.

    Properties : Type 'vec' of size 1.

  • Register initial condition

    Set the length and the initial conditions of the register.

    Properties : Type 'vec' of size -1.

  • Max delay

    It defines the largest value the time delay input can have.The value cannot be negative.

    Properties : Type 'vec' of size 1.

Default properties

  • always active: no

  • direct-feedthrough: yes

  • zero-crossing: no

  • mode: no

  • regular inputs:

    - port 1 : size [1,1] / type 1

    - port 2 : size [1,1] / type 1

  • regular outputs:

    - port 1 : size [1,1] / type 1

  • number/sizes of activation inputs: 1

  • number/sizes of activation outputs: 2

  • continuous-time state: no

  • discrete-time state: yes

  • object discrete-time state: no

  • name of computational function: delayv

Interfacing function

  • SCI/modules/scicos_blocks/macros/Linear/DELAYV_f.sci

Computational function

  • SCI/modules/scicos_blocks/src/fortran/delayv.f (Type 1)
