DIFF_f — Derivative

Block Screenshot

Contents

Palette

Description

This block computes the derivative of the input.

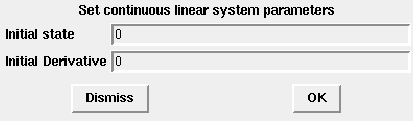

Dialog box

  • Initial state

    The initial continuous state.

    Properties : Type 'vec' of size 1.

  • Initial Derivative

    The initial derivative state.

    Properties : Type 'vec' of size 1.

Default properties

  • always active: yes

  • direct-feedthrough: no

  • zero-crossing: no

  • mode: no

  • regular inputs:

    - port 1 : size [1,1] / type 1

  • regular outputs:

    - port 1 : size [1,1] / type 1

  • number/sizes of activation inputs: 0

  • number/sizes of activation outputs: 0

  • continuous-time state: yes

  • discrete-time state: no

  • object discrete-time state: no

  • name of computational function: diffblk

Interfacing function

  • SCI/modules/scicos_blocks/macros/Misc/DIFF_f.sci

Computational function

  • SCI/modules/scicos_blocks/src/fortran/diffblk.f (Type 10001)
