DLR — Discrete transfer function

Block Screenshot

Contents

Palette

Description

This block realizes a SISO linear system represented by its rational transfer function (in the symbolic variable z). The rational function must be proper.

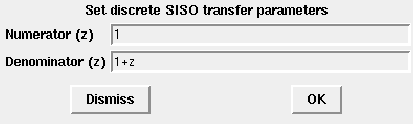

Dialog box

  • Numerator (z)

    This parameter sets the numerator of the transfer function.

    This must be a polynomial inz .

    Properties : Type 'pol' of size 1.

  • Denominator (z)

    This parameter sets the denominator of the transfer function.

    This must be a polynomial inz .

    Properties : Type 'pol' of size 1.

Default properties

  • always active: no

  • direct-feedthrough: no

  • zero-crossing: no

  • mode: no

  • regular inputs:

    - port 1 : size [1,1] / type 1

  • regular outputs:

    - port 1 : size [1,1] / type 1

  • number/sizes of activation inputs: 1

  • number/sizes of activation outputs: 0

  • continuous-time state: no

  • discrete-time state: yes

  • object discrete-time state: no

  • name of computational function: dsslti4

Interfacing function

  • SCI/modules/scicos_blocks/macros/Linear/DLR.sci

Computational function

  • SCI/modules/scicos_blocks/src/c/dsslti4.c (Type 4)
