freq_div — Frequency division

Block Screenshot

Contents

Palette

Description

This block is a Super Block. The input event is directed once every n times to output. The input is driven by an event clock.

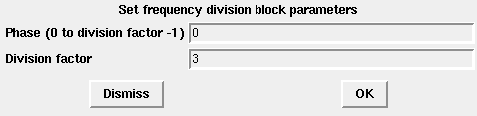

Dialog box

  • Phase

    positive scalar.

    Properties : Type 'vec' of size 1

  • Division factor

    an integer greater than 1.

    Properties : Type 'vec' of size 1

Default properties

  • always active: no

  • direct-feedthrough: no

  • zero-crossing: no

  • mode: no

  • number/sizes of activation inputs: 1

  • number/sizes of activation outputs: 1

  • continuous-time state: no

  • discrete-time state: no

  • object discrete-time state: no

  • name of computational function: csuper

Interfacing function

  • SCI/modules/scicos_blocks/macros/Events/freq_div.sci

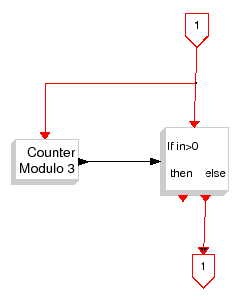

Compiled Super Block content

Authors

Ramine Nikoukhah - INRIA
