GENERAL_f — GENERAL_f title

Block Screenshot

Contents

Palette

Description

Add here a paragraph of the function description

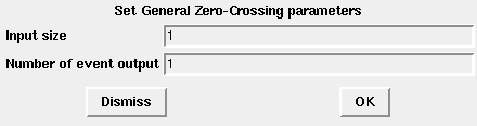

Dialog box

  • Input size

    The parameter description 1.

    Properties : Type 'vec' of size 1.

  • Number of event output

    The parameter description 2.

    Properties : Type 'vec' of size 1.

Default properties

  • always active: no

  • direct-feedthrough: yes

  • zero-crossing: yes

  • mode: no

  • regular inputs:

    - port 1 : size [1,1] / type 1

  • number/sizes of activation inputs: 0

  • number/sizes of activation outputs: 1

  • continuous-time state: no

  • discrete-time state: no

  • object discrete-time state: no

  • name of computational function: zcross

Interfacing function

  • SCI/modules/scicos_blocks/macros/Threshold/GENERAL_f.sci

Computational function

  • SCI/modules/scicos_blocks/src/fortran/zcross.f (Type 1)
