Gyrator — Modelica Gyrator

Block Screenshot

Contents

Palette

Description

A gyrator is a two-port element defined by the following equations: i1 = G2 * v2 i2 = -G1 * v1 where the constants G1, G2 are called the gyration conductance.

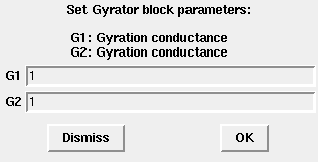

Dialog box

  • G1

    Gyration conductance (-i2/v1) .

    Properties : Type 'vec' of size 1.

  • G2

    Gyration conductance (i1/v2).

    Properties : Type 'vec' of size 1.

Default properties

  • Inputs :

    • Modelica variable name : 'p1'

      Implicit variable.

    • Modelica variable name : 'n1'

      Implicit variable.

    • Modelica variable name : 'p2'

      Implicit variable.

    • Modelica variable name : 'n2'

      Implicit variable.

  • Parameters :

    • Modelica parameter name : 'G1'

      Default value : 1

      Is a state variable : no.

    • Modelica parameter name : 'G2'

      Default value : 1

      Is a state variable : no.

  • File name of the model : Gyrator

Interfacing function

  • SCI/modules/scicos_blocks/macros/Electrical/Gyrator.sci

Modelica model

  • SCI/modules/scicos_blocks/macros/Electrical/Gyrator.mo

Authors

Masoud Najafi - INRIA
