Nom
INTEGRAL_m — Integration

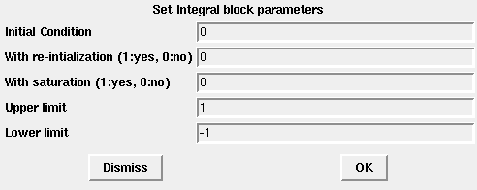

Dialog box
Initial Condition
A vector/scalar initial conditions.
With that parameter, one can define the datatype of the input/output. It can be a real or a complex type.
Properties : Type 'mat' of size [-1,-1].
With re-initialization
To reset its state to the specified initial condition based on an external signal select1 .
Properties : Type 'vec' of size 1.
With saturation
If selected, limits the states to a value between the Lower saturation limit and Upper saturation limit parameters.
Properties : Type 'vec' of size 1.
Upper limit
The upper limit for the integral.
Properties : Type 'mat' of size [-1,-1].
Lower limit
The lower limit for the integral.
Properties : Type 'mat' of size [-1,-1].
Default properties
always active: yes
direct-feedthrough: no
zero-crossing: no
mode: no
regular inputs:
- port 1 : size [1,1] / type 1
regular outputs:
- port 1 : size [1,1] / type 1
number/sizes of activation inputs: 0
number/sizes of activation outputs: 0
continuous-time state: yes
discrete-time state: no
object discrete-time state: no
name of computational function: integral_func
