INTRPLBLK_f — Interpolation
Description
The output of this block is a function of the input obtained by linear interpolation. This block has a single scalar input and a single scalar output port. The coord. and coord. give respectively the coordinate and the coordinate of the data points to be interpolated. coord must be strictly increasing.

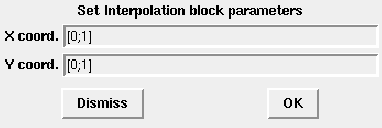

Dialog box
X coord.
A vector (strictly increasing).
Properties : Type 'vec' of size -1
Y coord.
A vector (same size as
coord).Properties : Type 'vec' of size -1
Default properties
always active: no
direct-feedthrough: yes
zero-crossing: no
mode: no
regular inputs:
- port 1 : size [1,1] / type 1
regular outputs:
- port 1 : size [1,1] / type 1
number/sizes of activation inputs: 0
number/sizes of activation outputs: 0
continuous-time state: no
discrete-time state: no
object discrete-time state: no
name of computational function: intrpl
