MATTRAN — Matrix Transpose

Block Screenshot

Contents

Palette

Description

This Block transposes an MxN matrix to a NxM matrix. For complex data type it uses the hermitian transpose. The equivalent of this block in Scilab is y=u'.

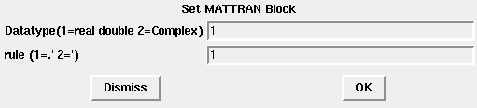

Dialog box

  • Datatype(1=real double 2=Complex)

    It indicates the data type of the output. It support only the two types double (1) and complex (2). If we input another entry in this label xcos will print the message "Datatype is not supported".

    Properties : Type 'vec' of size 1.

Example


.                        Complex
--                  --               --           --
| 1+i   2+3i    3+2i |   Tranpose    | 1- i   4- i |
| 4+i   5-8i    6-2i | ----------->  | 2-3i   5+8i |
--                  --               | 3-2i   6+2i |
.                                    --           --
.                  Real
--          --               --      --
| 1   -2   3 |   Tranpose    | 1    4 |
| 4   5    6 | ----------->  |- 2   5 |
--          --               | 3    6 |
.                            --      --

Default properties

  • always active: no

  • direct-feedthrough: yes

  • zero-crossing: no

  • mode: no

  • regular inputs:

    - port 1 : size [-1,-2] / type 1

  • regular outputs:

    - port 1 : size [-2,-1] / type 1

  • number/sizes of activation inputs: 0

  • number/sizes of activation outputs: 0

  • continuous-time state: no

  • discrete-time state: no

  • object discrete-time state: no

  • name of computational function: mattran_m

Interfacing function

  • SCI/modules/scicos_blocks/macros/MatrixOp/MATTRAN.sci

Computational function

  • SCI/modules/scicos_blocks/src/c/mattran_m.c

  • SCI/modules/scicos_blocks/src/c/matztran_m.c

See also

Authors

  • Fady NASSIF INRIA

  • Alan Layec INRIA
