QUANT_f — Quantization

Block Screenshot

Contents

Palette

Description

This block outputs the quantization of the input according to a choice of methods:

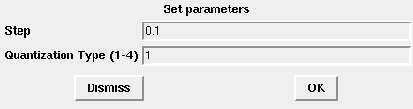

Dialog box

  • Step

    scalar, Quantization step

    Properties : Type 'vec' of size 1.

  • Quantization Type

    scalar with possible values 1,2,3 or 4 Properties : Type 'vec' of size 1.

Default properties

  • always active: no

  • direct-feedthrough: yes

  • zero-crossing: no

  • mode: no

  • regular inputs:

    - port 1 : size [-1,1] / type 1

  • regular outputs:

    - port 1 : size [-1,1] / type 1

  • number/sizes of activation inputs: 0

  • number/sizes of activation outputs: 0

  • continuous-time state: no

  • discrete-time state: no

  • object discrete-time state: no

  • name of computational function: qzrnd

Interfacing function

  • SCI/modules/scicos_blocks/macros/NonLinear/QUANT_f.sci

Computational function

  • SCI/modules/scicos_blocks/src/fortran/qzrnd.f

  • SCI/modules/scicos_blocks/src/fortran/qztrn.f

  • SCI/modules/scicos_blocks/src/fortran/qzflr.f

  • SCI/modules/scicos_blocks/src/fortran/qzcel.f

Authors

Ramine Nikoukhah - INRIA
