Nom
RAMP — Ramp
Description
The Ramp block generates a signal that starts at a specified time and value and changes by a specified rate. The block's Slope , Start time and Initial output parameters determine the characteristics of the output signal. All must have the consistent dimensions after scalar expansion.

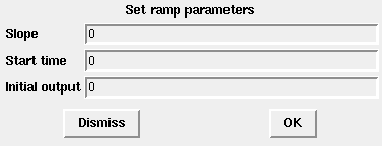

Dialog box
Slope
The rate of change of the generated signal.
Properties : Type 'vec' of size 1.
Start time
The time at which the signal begins to be generated.
Properties : Type 'vec' of size 1.
Initial output
The initial value of the signal.
Properties : Type 'vec' of size 1.
Default properties
always active: yes
direct-feedthrough: no
zero-crossing: yes
mode: yes
regular outputs:
- port 1 : size [1,1] / type 1
number/sizes of activation inputs: 0
number/sizes of activation outputs: 0
continuous-time state: no
discrete-time state: no
object discrete-time state: no
name of computational function: ramp
