SineVoltage — Sine voltage source
Description
This Modelica block a general sine voltage source. The internal ohmic resistance is zero.

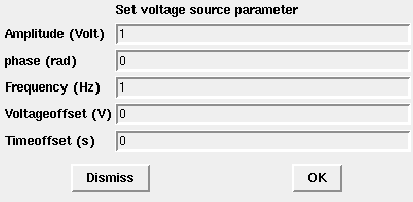

Dialog box
Amplitude (Volt)
Sine voltage amplitude
Properties : Type 'vec' of size 1.
phase (rad)
phase shift of the sine voltage
Properties : Type 'vec' of size 1.
Frequency (Hz)
Sine voltage frequency
Properties : Type 'vec' of size 1.
Voltageoffset (V)
Offset Voltage of the sine voltage
Properties : Type 'vec' of size 1.
Timeoffset (s)
Start time. During the start time, the signal value is equal to the voltage offset.
Properties : Type 'vec' of size 1.
Default properties
Inputs :
Modelica variable name : 'p'
Implicit variable.
Outputs :
Modelica variable name : 'n'
Implicit variable.
Parameters :
Modelica parameter name : 'V'
Default value : 1
Is a state variable : no.
Modelica parameter name : 'phase'
Default value : 0
Is a state variable : no.
Modelica parameter name : 'freqHz'
Default value : 1
Is a state variable : no.
Modelica parameter name : 'offset'
Default value : 0
Is a state variable : no.
Modelica parameter name : 'startTime'
Default value : 0
Is a state variable : no.
File name of the model : SineVoltage
