Nom
SourceP — Thermal-hydraulic constant pressure source
Description
This thermal-hydraulic component represents a thermal-hydraulic constant pressure supply. This block is specified with its output pressure and temperature. Conventionally, the flow direction is positive when the fluid flows out of the block.

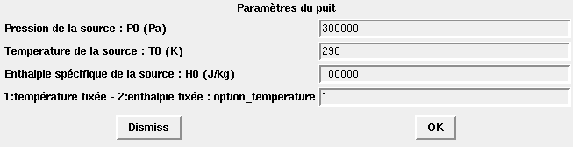

Dialog box
Pression de la source : P0 (Pa)
Pressure of the thermohydraulic source
Properties : Type 'vec' of size -1.
Temperature de la source : T0 (K)
Temperature of the thermohydraulic source
Properties : Type 'vec' of size -1.
Enthalpie spécifique de la source : H0 (J/kg)
Specific enthalpie of the thermohydraulic source
Properties : Type 'vec' of size -1.
1:température fixée - 2:enthalpie fixée : option_temperature
Temperature option. 1: fixed temperature - 2: fixed enthalpy
Properties : Type 'vec' of size -1.
Default properties
Outputs :
Modelica variable name : 'C'
Implicit variable.
Parameters :
Modelica parameter name : 'P0'
Default value : 300000
Is a state variable : no.
Modelica parameter name : 'T0'
Default value : 290
Is a state variable : no.
Modelica parameter name : 'H0'
Default value : 100000
Is a state variable : no.
Modelica parameter name : 'option_temperature'
Default value : 1
Is a state variable : no.
File name of the model : Source
