Nom
SUBMAT — Sub-matrix extraction
Description
This block outputs a sub matrix of the input matrix. The output matrix will be defining by using the parameters of this block.

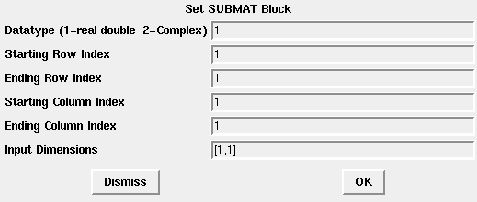

Dialog box
Datatype (1=real double 2=Complex)
Type of the output matrix. It can be double or complex.
Properties : Type 'vec' of size 1.
Starting Row Index
The first row of the submatrix.
Properties : Type 'vec' of size 1.
Ending Row Index
The last row of the Submatrix.
Properties : Type 'vec' of size 1.
Starting Column Index
The first column of the submatrix.
Properties : Type 'vec' of size 1.
Ending Column Index
The last row of the submatrix.
Properties : Type 'vec' of size 1.
Input Dimension
The Matrix input dimensions.
Properties : Type 'vec' of size 2.
Default properties
always active: no
direct-feedthrough: yes
zero-crossing: no
mode: no
regular inputs:
- port 1 : size [-1,-2] / type 1
regular outputs:
- port 1 : size [-1,-2] / type 1
number/sizes of activation inputs: 0
number/sizes of activation outputs: 0
continuous-time state: no
discrete-time state: no
object discrete-time state: no
name of computational function: submat
