Nom
Switch — Non-ideal electrical switch
Description
This is a non-ideal two-pole switch. If the explicit input become positive, two pins are connected via a resistor of resistance RON). Otherwise, two pins are connected via ROFF resistance. Note that using this block may result in a stiff model, so try to choose proper error tolerances.

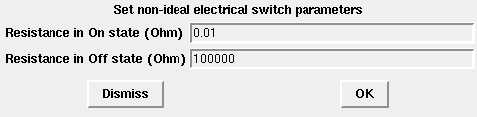

Dialog box
Resistance in On state (Ohm)
Switch resistance when the Switch is closed
Properties : Type 'vec' of size 1.
Resistance in Off state (Ohm)
Switch resistance when the switch is open
Properties : Type 'vec' of size 1.
Default properties
Inputs :
Modelica variable name : 'p'
Implicit variable.
Modelica variable name : 'inp'
Explicit variable.
Outputs :
Modelica variable name : 'n'
Implicit variable.
Parameters :
Modelica parameter name : 'Ron'
Default value : 0.01
Is a state variable : no.
Modelica parameter name : 'Roff'
Default value : 100000
Is a state variable : no.
File name of the model : Switch
