Nom
SWITCH_f — Switch
Description
This is a Manual Switch block. It selects one of its inputs to pass through to the output. The selected input is propagated to the output, while the unselected inputs are discarded.

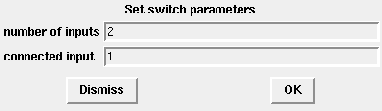

Dialog box
number of inputs
Specify the number of data inputs to the block.
Properties : Type 'vec' of size 1
connected input
an integer. It must be between 1 and the number of inputs.
Properties : Type 'vec' of size 1
Default properties
always active: yes
direct-feedthrough: yes
zero-crossing: no
mode: no
regular inputs:
- port 1 : size [-1,1] / type 1
- port 2 : size [-1,1] / type 1
regular outputs:
- port 1 : size [-1,1] / type 1
number/sizes of activation inputs: 0
number/sizes of activation outputs: 0
continuous-time state: no
discrete-time state: no
object discrete-time state: no
name of computational function: switchn
