VsourceAC — Electrical AC voltage source
Description
This component is an AC voltage source with sinusoid output voltage. The amplitude and the frequency of the output voltage is set by the user. The ohmic resistance of this block is zero.

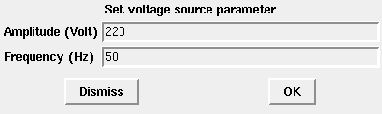

Dialog box
Amplitude (Volt)
Amplitude of the output sinusoid voltage
Properties : Type 'vec' of size -1.
Frequency (Hz)
Frequency of the output sinusoid voltage
Properties : Type 'vec' of size -1.
Default properties
Inputs :
Modelica variable name : 'p'
Implicit variable.
Outputs :
Modelica variable name : 'n'
Implicit variable.
Parameters :
Modelica parameter name : 'VA'
Default value : 220
Is a state variable : no.
Modelica parameter name : 'f'
Default value : 50
Is a state variable : no.
File name of the model : VsourceAC
